| Model No. |
C4 400 |
C4 550 |
| Swing over bed |
210 mm |
210 mm |
| Distance between centers |
410 mm |
550 mm |
| Hole through spindle |
20 mm |
20 mm |
| Cross slide travel |
100 mm |
100 mm |
| Compound travel |
70 mm |
70 mm |
| Spindle taper |
MT3 |
MT3 |
| Tailstock taper |
MT2 |
MT2 |
| Motor output power |
550 W |
550 W |
| Range of threads - Metric version |
0.4-3.0 mm (12 Threads pitches) |
0.4-3.5 mm (15 Threads pitches) |
| Imperial version |
10-44TPI (8 Threads pitches) |
7-44 TPI (12 Threads pitches) |
| Weight (Net/Gross) |
90/117kg |
94/121kg |
| Packing Size (LxWxH) |
1070 x 730 x 570mm |
1070 x 730 x 570mm |
STANDARD ATTACHMENTS : Ø100mm 3-Jaw chuck, Dead Center, Change gear set, Wrench set, Oil Can

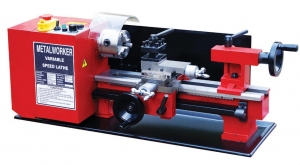

Mini Lathe SC-2
Mini Lathe C-3

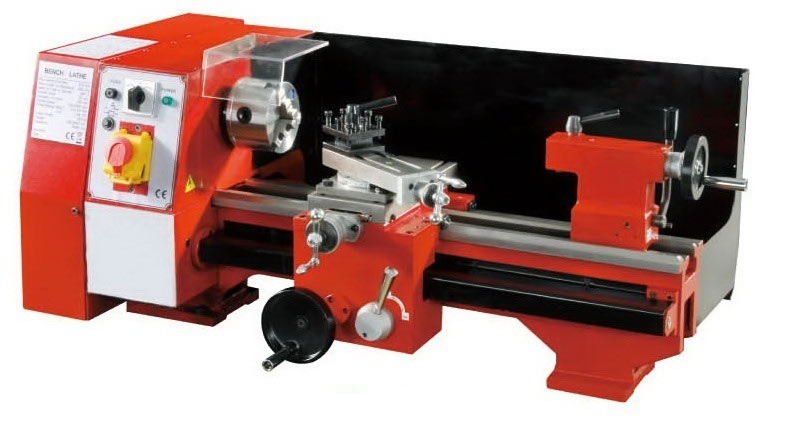

Bench Lathe C-4
