Press Machines

POWER PRESS (SM-25)

power press
All Steel Construction "C" Type with/without inclination
Rolling Key Stroke Adjustment Facility

Specifications

Cty. Tonnes 3 5 10 15 20 30
Stroke Adjust 2- 19 6- 25 6- 25 10- 38 13- 51 13- 63
Hole in Ram 19 25 25 32 32 38
Hole in Bed 51 63 76 89 89 102
Length & width of bed 255x 152 305x 178 356x 203 432x 254 457x 305 508x 355
Dist. Bed to Ram 140 155 188 205 203 266
Stroke per minute
Geared 90 80 80 75 60 55
Un Geared 165 150 130 120 120 115
Power Require (HP) 0.5 0.5 1 1.5 2 3
Cty. Tonnes 50 75 100 150 200 250
Stroke Adjust 13- 76 13- 102 13- 114 13- 127 13- 152 13- 165
Hole in Ram 51 51 55 55 63 63
Hole in Bed 127 178 191 203 216 216
Length & width of bed 660x 406 711x 508 813x 558 914x 610 965x 660 1076x 711
Dist. Bed to Ram 290 330 381 410 432 485
Stroke per minute
Geared 50 40 40 30 30 30
Un Geared 90 --- --- --- --- ---
Power Require (HP) 5 7.5 10 15 20 25

Bench Power Press (Small Job) SM-26

Bench Power Press for Small Jobs

* CAst Iron Frame

Specifications

Capacity Tonne 1 2
Stroke Per Min. Nos. 190 180
Hole in Ram for Tools mm 18x32 18x38
Centre to Back mm 200x150 225x175
Dist. Bed to Guide mm 150 150

Cross Shaft Power Press (SM-27)

cross shaft power press

Specifications

Pillar Press (SM-28)

pillar press

All steel construction

Specifications

Capacity (Tonnes) Ton 10 15 20 30 50 75 100 150 200
Stroke Adjustment mm 6-25 10-38 13-51 13-63 13-76 13-102 13-114 13-127 13-152
Hole in Ram mm 25 32 32 38 51 51 55 55 63
Hole in Bed mm 76 89 89 102 127 178 191 203 216
Length & width of bed mm 355x 406x 457x 508x 560x 610x 660x 711x 762x
  406 457 508 559 610 762 813 914 965
Dist. Bed to Ram mm 180 205 230 266 290 330 381 410 432
Stroke per minute Geared) mm 80 75 60 55 50 40 40 30 30
Stroke per minute(Un Geared) mm --- --- 50 40 30 --- --- --- ---
Power Required H.P 1 1.5 2 3 5 7.5 10 15 20

Hydraulic Press (SM-29)

hydraulic press

All Steel Construction

Specifications

Pressure Tons 10 15 20 25 40 50 60 75 100 150 200
Between Column mm 625 x 200 650 x 200 700 x 225 825 x 325 950 x 375 1000 x 415 1050 x 450 1125 x 525 1200 x 625 1250 x 675 1300 x 700
Between Ram to Bed mm 150 x 750 150 x 750 150 x 750 175 x 900 175 x 900 175 x 900 175 x 900 175 x 900 175 x 900 175 x 1000 175 x 1000
Travel of Ram mm 140 145 150 175 190 200 205 220 230 300 320
Power Required H.P 1.5 2 2 2 3 3 3 5 5 7.5 10

Fly Press (SM-30)

fly press

Specifications

Size of Pressure No. 0 1 2 3 4 5 6 7 8 9 10 12
Centre to Back mm 82 89 101 114 127 139 152 165 177 190 193 196
Base to Guide mm 120 139 152 158 165 171 184 197 209 222 228 234
Dia of Screw mm 31 44 44 50 50 57 63 69 69 76 76 83
Dia of Wheel mm 355 406 457 508 558 609 660 711 762 812 812 820

Deep Throat Press (SM-31)

punching machine

Hand Operated Geared

Specifications

Size of Press No 2 4 6 8
Centre of Back Inch 6 9 12 15
Base to guide Inch 2.1/2 3.1/2 4 4.3/4

Double Pillar Press (SM-32)

double pillar press

Specifications

Size of Press No 1 2 3 4 5 6
Screw/Pillar Dia mm 41 42 50 54 60 66
Total Height mm 457 533 609 660 812 914
Dist. Bet. Pillars mm 203 228 254 279 304 343
Dia of Wheel mm 406 457 508 558 660 711
Size of Press No 8 10 12 16 20 24
Screw/Pillar Dia mm 78 85 98 111 136 149
Total Height mm 1016 1066 1143 1219 1371 1422
Dist. Bet. Pillars mm 406 457 508 558 660 711
Dia of Wheel mm 812 863 914 1016 1117 1270

Double Body Fly Press (SM-33)

double body fly press

Specifications

Size of Press No 4 6 8 10 12 16 20 24
Dia of Screw mm 57 70 76 79 85 98 114 127
Width Between Frames mm 260 292 330 381 431 482 584 635
Bed to Guide mm 216 228 254 279 317 355 355 406
Size of Bed mm 304 x 482 355 x 558 406 x 609 444 x 660 508 x 736 558 x 838 622 x 940 660 x 1016
Hole in Ram mm 25.4 25.4 31.75 31.75 38 44 50 50
Dia of Wheel mm 609 711 812 863 914 1117 1219 1320

Arbour Presses (SM-34)

arbour presses

Specifications

Model   AP-0 AP-1 AP-2 AP-2 AP-3 AP-4 AP-5
Max. Pressure exerted Ton 1/4 1/2 1 1 1.1/2 3 4
Centre to Back mm 114 139 171 171 190 254 254
Max. Height from base to guide mm 171 279 343 914 381 533 635
Size of arbour round or square mm 25.4 31 38 38 44 57 60

Spring Control Arbour Press (SM-35)

spring control arbour presses

Specifications

Model   SAP-0 SAP-1 SAP-2 SAP-3
Max. Dia of work admitted mm 105 175 275 275
Max. Pressure exerted (approx) Kgs 200 500 850 1250
Dia of spindle mm 28 35 41 48
Max.Dist. table to spindle mm 100 170 270 370
Size of recta. table mm 130x90 180x130 240x140 310x240
Max.Dist from spindle to back mm 45 65 90 120

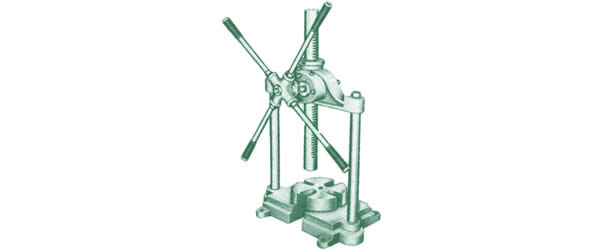

Push Broaching Press (SM-36)

push broaching press

Specifications

Model   TPA-1 TPA-2 TPA-3
Stroke Ram to base Inch 12 14 16
Centre Dist. of column Inch 10 12 14
Ram Diameter Inch ¼ 1.½ 2
Gap in base Inch ½, ¾, 1, 1.⅓, 1.½ ¾, 1, 1.⅓, 1.½ 1, 1.¼, 1.½, 2

Toggle Press (SM-37)

toggle press

Specifications

Model   TPA-1 TPA-2
Rated Capacity Tons 1 2
Centre to Back mm 62 87
Max.Movemnet of handle rear and forward position Deg 80 80
Base to guide mm 82 137
Ram Adjustment mm 24 31
Stroke mm 45 58
Area of base plate mm 257 x 350 357 x 425

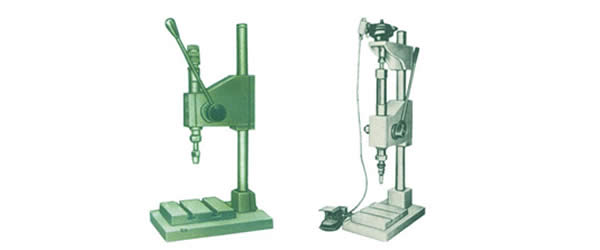

Impact Press (SM-38)

impact press

Specifications

Model   IP-1 IP-3 IP-5
Max.adjustment pressure Kgs 1100 3500 5500
Working Surface of table mm 200x160 260x220 240x240
Throat centre distance mm 141 198 178
Height x dia of column mm 600x36 1100x60 1100x100
Collet Bore mm 10 14 20
Max Distance between Punch and Base
Hand mm 285 610 650
Pneumatic mm 285 310 250

Ecentric Press (SM-39)

ecentric press

Specifications

Size No. 1 2 3
Approx. Pressure Tons 0.75 2 3
Stroke or ram mm 25.4 31.75 28.57
Center to Back mm 47.6 63.5 114.3
Front to Back mm 101.6 120.65 152.4
Base to guide mm 81 95.25 146.05

Spin Riveting Press (SM-40)

spin riveting press

Automatic/semi-automatic models. Beautiful finish on the riveted side, large throat depth to accommodate a variety of jobs, precise and stepless stroke adjustment, any shape of riveted head.

Specifications

Technical Details SRM-3 SRM-6 SRM-8 SRM-10 SRM-15 SRM-20
Riveting Capacity (Dia in mm)
Solid - M.S/S.S 0.5 to 3 0.5 to 6 0.5 to 8 0.5 to 10 0.5 to 15 0.5 to 20
Solid - AL/Cu/Brass 0.5 to 5 0.5 to 8 0.5 to 13 0.5 to 15 0.5 to 20 0.5 to 25
Semi-Hollow M.S 1 to 6 1 to 10 1 to 13 1 to 15 1 to 20 1 to 30
Semi-Hollow AL/Cu/Brass 1 to 9 1 to 15 1 to 17 1 to 20 1 to 23 1 to 30
Actuation Pneumatic Hydro Pneumatic
Throat Depth (mm) 125 125 140 140 200 200
Shut height adjustment (mm) 0 to 155 0 to 155 0 to 200 0 to 200 0 to 250 0 to 250
Adj. timing cycle (sec) 0 to 9.9 0 to 9.9 0 to 9.9 0 to 9.9 0 to 9.9 0 to 9.9
Motor 30 A.C (H.P) 0.25 0.50 0.75 1.00 1.5 2.0
Intel Air Pressure Kg/cm² 3 to 7 3 to 7 3 to 7 3 to 7 3 to 7 3 to 7

Punching Machine (SM-15)

punching machine

Hand Operated Geared

Specifications

Model   10/6 16/10 20/12
Round Dia mm 10 16 20
Upto Thickness of plate mm 4 6 8
Depath of gap mm 87 150 150

Deep Throat Punch Press (SM-16)

deep throat punch press

Specifications

Model   100/16
Round Dia mm 100
Upto Thickness of plate mm 1.6
Depath of gap mm 150
