Folding / Bending Machines

Floding Machine (SM-41)

floding machine
Model   FM-1250 FM-2050
Maximum width of sheet mm 1250 2050
Maximum thickness of sheet mm 2 2
Clamping full length   Cam locking Screw locking
Opening top beam mm 50 152
Extra radius finger available   19 & 25 19 & 25

Press Brake Hand Operated (SM-42)

press brake hand operated

Specifications

Bending Width Feet 4 6 7 8
Bending Thickness Swg 14 14 14 14

Bending Width Feet 4 6 7 8
Bending Thickness Swg 10 10 10 10

Motorised Press Brake (SM-43)

motorised press brake

Specifications

Capacity Tons 20 25 65 80 100
Width mm 1525 2030 2030 2540 2540
Thickness(M.S) mm 1.6 1.6 4 3.25 4.5
Power Required (Main) H.P 5 7.5 7.5 10 15
Power Ram Adjustable H.P Manual 1 1 1.5 2
Capacity Tons 100 120 140 160 200
Width mm 3125 2540 2030 3125 3125
Thickness(M.S) mm 3.25 6 8 6 6
Power Required (Main) H.P 15 20 25 25 30
Power Ram Adjustable H.P 2 2 2 2 2

Edge Folding Machine (SM-44)

edge folding machine
Length Available Inch 12 to 48
Max Thickness Swg 22

Universal Edging/Bending & Folding Machine (SM-45)

universal edging/bending & folding machine

Thickness 12 to 14 Swg

Length 4″ to 10″

universal edging/bending & folding

Thickness 12 to 14 Swg

Length 4″ to 10″

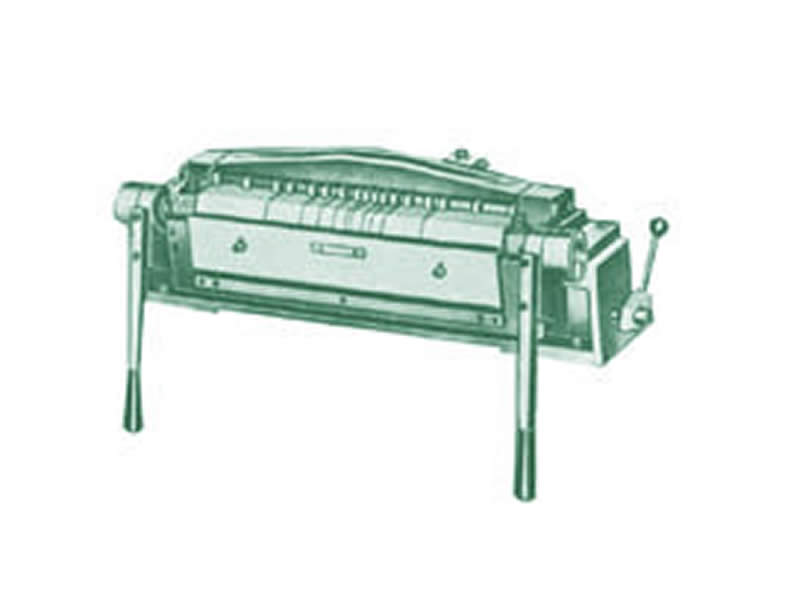

Precision Bending Brakes (SM-46)

precision bending brakes
Model   PBB-12 PBB-24 PBB-36 PBB-48
Max. Bending width mm 300 610 1000 1250
Max. Thickness (M.S) mm 1.6 1.6 1.6 1.6
Max Bending angle in one operation Deg 135 135 135 135
Max. Depth of box or tray mm 75 75 75 75
Max Bending radius (by using radius finger) mm 19 19 19 19
Opening of Top Finger mm 22 30 30 30
Depth of Finger mm 75 75 75 75

Trunk Folding Machine (SM-47)

trunk folding machine

Max. Capacity 20 Swg(M.S)

Size:- 2′ - 3′ - 4′

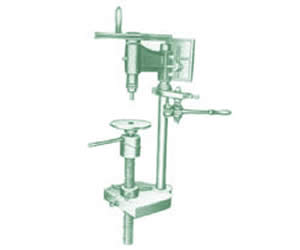

Seaming Machines (SM-50/51)

TOP BOTTOM SEAMING MACHINE

top bottom seaming machine

SIDE SEAMING MACHINE

side seaming machine

Slip-out Hand Oper. Ungeared Bending Roller (SM-52)

Slip-out Type Hand Operated Ungeared Bending Roller
Length of Rolls Inch 12 18 24 36 48 24 36 48
Bending Capa Swg 24 24 18 18 18 12 12 12

Geared Bending Rollers/Slipout Type (SM-53)

geared bending rollers/slipout
Bending width mm 625 to 2438
Bending Thickness mm 1.6 to 6.3

Motorised Plate Bending Machine (SM-54)

motorised plate bending machine
Capacity in M.S Top Roll dia Bottom Roll Dia Moto. H.P
  (mm) (mm) (mm)
1250x3 100 90 2
1250x6 125 105 3
1250x10 150 125 5
1250x13 175 140 5
1250x20 200 160 10
1250x50 250 200 15
1825x3 125 100 3
1825x6 150 125 5
1825x10 180 150 7.5
1825x13 200 160 10
1825x16 215 170 12.5
1825x20 225 200 15
1825x25 275 225 20
2000x3 130 105 3
2000x6 160 135 5
2000x10 185 150 7.5
2000x13 205 165 10
2000x16 220 175 12.5
2000x20 230 190 15
2000x25 280 235 20
2500x3 150 125 5
2500x6 175 150 7.5
2500x10 200 170 10
2500x13 230 180 15
2500x16 240 200 20
2500x20 260 220 20
2500x25 300 260 30
3050x3 175 150 7.5
3050x6 200 170 10
3050x10 240 200 15
3050x13 260 220 20
3050x16 275 225 20
3050x20 300 250 25
3050x25 350 300 40

Rapid Benders (SM-55)

rapid benders

Bending Toolings

Size No 1 2 3 4 5
Round Mild Steel Bar mm 8 13 16 25 32
Square Mild Bar mm 6 10 13 19 25
Steel Tubeing 16 gauge mm 13 19 25 32 38
Std.iron pipes I.P.S mm 10 13 19 25 32
Flat Steel bar (Bent Flat) mm 5x25 6x40 6x50 10x100 13x100
Flat Steel Bar (Edgewise) mm 3x13 3x20 3x25 6x25 6x38
Angle mm 3x13x13 3x19x19 3x25x25 5x25x25 6x38x38
Channel mm 1.5x13x13 3x10x19 3x13x25 5x13x25 6x13x38
Radius Capacity mm 152 228 304 304 304
Height of Std.Forming nose mm 19 25 38 38 38
Built-up nose available mm 50 76 101 101 101
Centre pin hole-diameter mm 13 25 25 25 25
