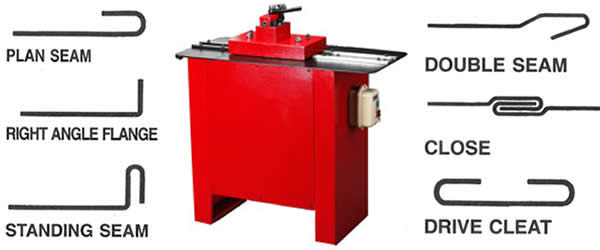

Roll Formers (SM-49)
Roll Forming Machine principally used for joining sheet metal at right angle on straight runs, the comes complete with pittsburg rolls, Auxiliary shafts are fitted as standard, onto which double seam rolls can be fixed. When the flanging attachment is used with machine this makes possible the forming of round bends.
| Material Thickness | mm | 1.0 (20 Swg) | 1.6 (16 Swg) |
| Material Used | mm | 32 | 32 |
| Pocket Depth | mm | 13 | 13 |
FLANGING ATTACHMENT
Material Thickness 0.5 - 1 mm (20 - 26g)
Matreial Used - 25 mm (1 in)
Pocket Depth - 10 mm (3/8 in)
POWER FLANGING
Material Thickness 0.4 - 0.7mm (22 - 28g)
Material Used - 25 mm (1 in)
Seam width - 10 mm (3/8 in)
CLOSED PITTSBURGH
