Band Saw
Max Models: J - 530 | J - 540
Master Models: J-530 (E) | J-540 (E) | J-550 (E)
Special table with 45° tilt
Specially designed Mitre gauge with Roller guide given in table T-slot for easy sliding
Special Locking rod system for tilting. Angular cutting attachment to enable the cutting work piece at different angles without tilting the worktable. Circular cutting attachment can be mounted quickly on the band saw. This device allows you to cut preselected radius or circles
Upper & Lower saw blade guide system
With bearing runner on the back side for maximum support to saw blade.
Upper system has brass adj. guides and a blade protection cover.
Dynamically balanced cast iron broad wheels for smooth operations.
An efficent hand brake is provided to quick stop the saw wheel after disconnecting the power
Adjustable brush on lower saw wheel rim continuously keep the wheel free from the saw dust.
Dust chute to connect dust collector for dust free environment.
| Model No | J-530 | J-540 |
|---|---|---|
| mm/Inch | mm/Inch | |
| Diameter of saw wheels | 305/12" | 455/18" |
| Throat depth | 280/11" | 430/17" |
| Max. cutting capacity | 150/6" | 254/10" |
| Work table size | 380 x 380 / 15" x 15" | 535 x 585 / 21" x 23" |
| Table tilt | 45º | 45º |
| Width of saw wheels | 38/1½" | 50/2" |
| Table height from floor | 490/19¼" | 680/26¾" |
| Approx. speed of saw wheel (RPM) | 500/750 | 500/750 |
| Power required-HP/RPM | 1.5/1440 | 2/1440 |
| Approx. wt. of machine - kg. | 160 | 315 |
Circular Saw
Max Models: Tilting Arbour Circular Saw J-533 | J-634 | J-634 ST
A versatile range of saws to suit your set-up and budget!
Mitre gauge with guide given in table T-slot for easy sliding.
Specially designed Mitre gauge
Alluminium gap cover, Table with 45° tilt
| Model No | J-533 | J-634 | J-634 ST |
|---|---|---|---|
| mm / inch | mm / inch | mm / inch | |
| Max. Circular Saw Diameter | 200/8" | 355 / 14" | 355 / 14" |
| Work table size | 455x355 / 18"x14" | 915x760 / 36"x30" | 915x760 / 36"x30" |
| Sliding Table Size | 710 x 400 / 28" x 15¾" | ||
| Max. Depth of cut | 50/2" | 114/4½" | 114/4½" |
| Arbour tilt | 45º | 45º | |
| Table tilt | 45º | ||
| Spindle speed (RPM) | 3000 | ||
| Circular saw speed (RPM) | 3500 | ||
| Table height from floor | 825/32½" | ||
| Size of dust collection port | 100 / 4" | 100 / 4" | |
| Power required HP / RPM | 1/1440 | 3/1440 | 3/1440 |
| Approx. wt. of machine - kg | 50 | 250 |

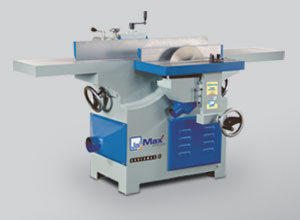

Combi-Planers
For the professionals who value multi-functionality and precision workmanship!
Combiplaners are combined Surfacer & Thicknesser m/cs. Combimax has the highest features in this range. Combining precision and multi functionality in a machine that can work wonders for a professional set-up.
Folding top facility to give more flexibility & visibility to work while thicknessing.
Provided as a safety feature to avoid backsliding of the workpiece while thicknessing.
Noise dampening system for both surface tables that reduces the noise level considerably for a quieter operation.
Specially designed Mitre gauge with guide given in table T-slot for easy sliding
| Model No | J-1013 | J-1013 L | J-1018 | J-1018 LL | J-1010 | J-1015 |
|---|---|---|---|---|---|---|
| mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | |
| Surfacing capacity | 330 (13") | 330 (13") | 455(18") | 455(18") | 254/10" | 381/15" |
| Max.planing width | 330 (13") | 330 (13") | 455(18") | 455(18") | 254/10" | 381/15" |
| Thicknessing capacity | 177(7") | 177(7") | 177(7") | 177(7") | 177/7" | 177/7" |
| Length of surface table | 1220 (48") | 1550 (61") | 1550(61") | 1830 (72") | 1140/45" | 1295/51" |
| Rebatting capacity | 12.5 (½") | 12.5 (½") | 12.5 (½") | 12.5 (½") | 12.5/½" | 12.5/½" |
| Length of thickness table | 560 (22") | 710 (28") | 660(26") | 810 (32") | 635/25" | 710/28" |
| Feeding speed-feet per minute | 21 | 21 | 21 | 21 | 24 | 24 |
| Cutter block speed- RPM | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Standard cutter block - code no. | 3B-W | 3B-W | 3B-W | 3B-W | 2B | 2B |
| Circular saw table size | 610x315 | 610x315 | 610x315 | 610x315 | 610x315 | 610x315 |
| (24"x12½") | (24"x12½c") | (24"x12½") | (24"x12½") | 24"x12½" | 24"x12½" | |
| Up/Down movement of Cir.saw table | 75(3") | 75(3") | 75(3") | 75(3") | 75/3" | 75/3" |
| Max.circular saw diameter | 300 (12") | 300 (12") | 300 (12") | 300 (12") | 300 (12") | 300 (12") |
| Power required - HP / RPM | 3/1440 | 3/1440 | 5/1440 | 5/1440 | 3/1440 | 3/1440 |
| Approx.wt.of machine - kg. | 440 | 500 | 615 | 675 | 325 | 500 |
| Model No. | J-1020 | J-701 | J-702 | J-703 | J-302 | J-303 |
|---|---|---|---|---|---|---|
| mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | |
| Surfacing capacity | 508 / 20" | 330 / 13" | 455 / 18" | 610 / 24" | 254 / 10" | 330 / 13" |
| Max. planing width | 508 / 20" | 305 / 12" | 455 / 18" | 610 / 24" | 254 / 10" | 330 / 13" |
| Thicknessing capacity | 177 / 7" | 200 / 8" | 200 / 8" | 200 / 8" | 177 / 7" | 177 / 7" |
| Length of surface table | 1550 / 61" | 1220 / 48" | 1550 / 61" | 1550 / 61" | 1140 / 45" | 1220 / 48" |
| Rebating capacity | 12.5 / ½" | 12.5 / ½" | 12.5 / ½" | 12.5 / ½" | 12.5 / ½" | 12.5 / ½" |
| Length of thickness table | 785 / 31" | 660 / 26" | 760 / 30" | 915 / 36" | 610 / 24" | 660 / 26" |
| Feeding speed (feet per minute) | 24 | 24 | 24 | 24 | 24 | 24 |
| Cutter block speed (RPM) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Standard cutter block-code No. | 3B-W | 3B-W | 3B-W | 3B-W | 2B | 2B |
| Circular saw table size | 610x355/ | 610X355/ | 610X355/ | 610X355/ | 560X280/ | 560X280/ |
| 24"x14" | 24"x14" | 24"x14" | 24"x14" | 22"X11" | 22"X11" | |
| Up/Down movement of cir. saw table | 75/3" | 75/3" | 75/3" | 75/3" | 75/3" | 75/3" |
| Max. circular saw diameter | 300/12" | 300/12" | 300/12" | 300/12" | 300/12" | 300/12" |
| Power required HP / RPM | 5 / 1440 | 3 / 1440 | 5 / 1440 | 5 / 1440 | 2 / 1440 | 3 / 1440 |
| Approx. wt. of machine-kg. | 700 | 500 | 750 | 850 | 275 | 300 |

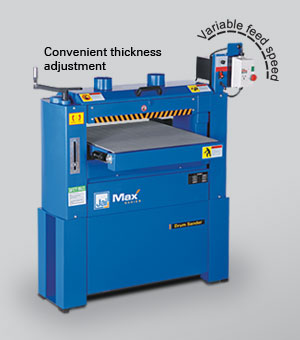

Drum Sanders
The two drums are dynamically balanced for extremely smooth running
Variable feed speedThe conveyor belt feed is driven by DC motor, providing variable feed speeds to suit all types of soft and hard wood workpiece.
Convenient thickness adjustmentThe conveyor table up-down is operated by means of a crank handle.
| Model No | J-2500 (Size:25") | J-3800 | J-1632 (Size:16"/32") |
|---|---|---|---|
| mm/inch | mm/inch | mm/inch | |
| Max. Sanding Width | 635(25") | 965(38") | 406(16") |
| Max.thickness of workpiece | 125(5") | 125(5") | 125(5") |
| Max.Sanding Depth | 3(⅛") | ||
| Min. thickness of workpiece | 6(¼") | 6(¼") | |
| Sanding Drum Speed - RPM | 1600 | 1600 | 1720 |
| Conveyor Belt Feed Speed -FPM (Variable) | 3∼20 | 3∼20 | 2∼10 |
| Sanding Drum Diameter | 125(5") | 125(5") | 125(5") |
| Dust Chute Diameter | 100(4") | 100(4") | 63(2 ½") |
| Sanding Drum Power Required - HP/RPM (1 Phase) | 3/1440 | 5/1440 | 1/1440 |
| Feed Drive DC Power Required - HP | ⅛ | ⅛ | ⅛ |
| Approx.Wt.of Machine - Kg. | 180 | 300 | 50 |
Mortisers Tenoner
Max Models : Chain Mortiser J - 930
Master Models : Chain Mortiser | Chisel Mortiser | Teno Mac
Easy & friendly operations and precision workmanship for perfect rectangular slots!
Chain grinding attachment : It is provided in both Max and Master machine as standard accessory, which facilitates regrinding of chain.
| Model No. | J-930 | J-930 (E) | J-930 (L) | J-920 | J-919 |
|---|---|---|---|---|---|
| mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | |
| Table Size | 550x290 | 560x255 | 470x150 | 700x150/ | 535x203 |
| 21½" x 11½" | 22" x 10 " | 18½"x6" | 27½"x6" | 21"x8" | |
| Up/Down movement of table | 75 / 3" | 75 / 3" | 75 / 3" | 200/8" | |
| Carbide cutter blocks (2 Nos.) | 6"Dia.x1"width | ||||
| Maximum length of tenon | 150/6" | ||||
| Top cutter block horizontal adjustment | 12.5/½ | ||||
| Cross movement of table | 100/4" | 100/4" | |||
| Longitudinal movement of table | 305/12" | 305/12" | 175/7" | 228/9" | |
| Max. Depth of cut | 140/5½" | 140/5½" | 140/5½" | 90/3½" | |
| Power required - HP / RPM | 2/1440 | 2/1440 | 2/1440 | 1/2800 | 2 x 2 / 2800 RPM |
| Approx. wt. of machine - kg. | 275 | 200 | 155 | 275 | 300 |
Moulding
Max Models : Tilting Arbour Spindle Moulder J - 504 (T)
Master Models : Spindle Moulder (Arch) | Spindle Moulder | Auto Mould | Double Auto Mould
Highest features, combining precision & multi-operations!
Auto Feeder AF-32 : To automize the feeding of wood pieces, this unique accessory can be immensely useful. It can be fixed on this Max-moulder and can be bought any time separately.
Fence assembly : Both fences can be adjusted independently or simultaneously for the setting of precise depth of cut. Fences can be adjusted endwise, too. So opening can be kept as small as required. Entire fence assembly can be easily removed for free hand moulding of curved or irregular work.
| Model No. | J-404 | J-504(T) | J-504(H) | J-504 | J-505 |
|---|---|---|---|---|---|
| mm/ inch | mm/ inch | mm/ inch | mm/ inch | mm/ inch | |
| Work table size | 610x610 | 835x760 | 835x835 | 760x760 | 455x150 |
| 24"x24" | 33"x30" | 33"x33" | 30"x30" | 18"x6" | |
| Spindle diameter | 25.4/1" | 31.75/1/¼” | 31.75/1/1¼” | 31.751/¼” | |
| UP/Down movement of spindle | 100/4" | 100/4" | 125/5" | 125/5" | 100/4" |
| Longitudinal movement of table | 50/2" | ||||
| Table Tilt -degree | 15º | ||||
| Feeding Speed (Feet per minute) | 24 | ||||
| Arbour tilt - degree | 45º | ||||
| Spindle speed (RPM) | 6000/9000 | 6000 | 6000 | 5000 | 4000 |
| Max. moulding block width | 100/4" | 100/4" | 125/5" | 125/5" | 114/4½" |
| Power required -HP/RPM | 2/2800 | 3/2800 | 3/2800 | 3/2800 | 3/1440 |
| Approx.wt. of machine - kg. | 175 | 400 | 450 | 400 | 260 |
Radial Saw
Max Models : J - 925(A)
Master Models : J - 925
The saw blade can be cut with 45° - tilted -saw blade, can be adjusted between 0° to 90°. Sliding of the saw carriage unit with 8 bearings on steel guides for smooth operation.
| Model No | J-925 | J-925(A) |
|---|---|---|
| mm/inch | mm/inch | |
| Max. circular saw diameter | 305 (12") | 350 (14") |
| Circular saw bore diameter - mm | 25.4 | 30 |
| Work table size | 915x760 (36"x30") | 890x1145 (35"x45") |
| Max. Depth of cut | 50 (2") | 90 (3½") |
| Max.crosscut capacity | 560 (22") | 550 (21½") |
| Arm radial capacity - Degree | 360º | 360º |
| Max.circular saw rotating angle - Degree | 90º | 90º |
| Circular saw speed - RPM | 2800 | 2800 |
| Table height from floor | 785 (31") | 800 (31½") |
| Saw guard dust chute diameter | 60 (2⅜") | |
| Electric motor - HP / RPM | 2/2800 | 3/2800 |
| Approx.wt.of machine - kg. | 325 | 250 |
Sanders
Max Models : Oscillating Vertical Sander J - 81 (OVS)
Oscillating Vertical Sander (Heavy Duty)
Horizontal/Vertical Sander
Designed for intricate contour sanding operations!
The table may be tilted front downwards up to a maximum of 45° to allow the sanding of beveled parts. Easy interchange of spindles for different workpiece size applications. The machine is equipped with two table inserts as standard - one round and one elliptical inside hole.
| Model No. | J - 81 OVS | J-82 OVS (Heavy Duty) | J-80 HVS | J-710 |
|---|---|---|---|---|
| mm / inch | mm / inch | mm / inch | mm / inch | |
| Table Size | 370x370 | 610x610 | 686x250 | |
| (14½"x14½") | (24"x24") | (27"x9⅞") | ||
| Oscillations per minute | 100 | 75 | ||
| Oscillation Stroke | 12(½") | 75(3") | ||
| Drum Diameter - (Standard) | 50(2") | |||
| Sanding Spindle Diameter - (Standard) | 19(¾") | |||
| Spindle Speed - RPM | 1720 | 1720 | 1400 | |
| Table Tilt - Degree | 45º | 45º | ||
| Table Height From Floor | 505(19¾") | 950 (37⅜") | ||
| Sanding Belt Width | 150(6") | |||
| Sanding Belt Length | 2260(89") | |||
| Sanding Belt Size | 150 x 1220 / 6" x 48" | |||
| Standing Disc Size | 254 / 10" | |||
| Belt Linear Speed - FPM | 3500 | |||
| Dust Chute Diameter | 50(2") | 100(4") | 100(4") | |
| Power Required - HP/ RPM (1-Phase) | 0.5/1440 | 1/1440 | 1.5/1440 | 1/1440 |
| Approx. Wt. of Machine - kg. | 35 | 140 | 100 | 50 |
Spl. Design M CS
Max Models : Basic Router J - 901
Basic Copy Lathe : J - 924 | J - 924 L
Faster, precise and low cost production for the everyday copy turning jobs!
Hand feed machine - ideal for stair parts and furniture components. Copy turning in one pass. Strong base ensures maximum rigidity with precision turning & copying. Transparent guard for total operator safety.
Copying works at diameters greater or smaller than the template or pattern, feed by handwheel. Four Spindle speed for selection depending upon type of workpiece. It is very easy & convenient to change the speed
| Model No. | J-923 | J-924 | J-924 L | J-901 |
|---|---|---|---|---|
| mm/inch | mm/inch | mm/inch | mm/inch | |
| Length of bed - 6.5 ft |
1980/78" | |||
| Height of centers | 165/6½" | |||
| Admit between centers | 1220 / 48" | 1016 / 40" | 1498 / 59" | |
| Max work diameter | 150/6" | |||
| Height of centers | 215 / 8⅝" | 215 / 8⅝" | ||
| Spindle speeds - RPM | 600 / 1050 / 1900 / 3200 |
600 / 1050 / 1900 / 3200 |
11000 | |
| Faceplate diameter | 265 / 10.5" | 265 / 10.5" | ||
| Max. Working Length | 970 / 38⅛" | 1450 / 57⅛" | ||
| Max. Diameter | 200 / 8" | 200 / 8" | ||
| Spindle vertical movement | 25/1" | |||
| Up/Down movement of table | 125/5" | |||
| Routing work table size | 610x420 / 24"x16½" | |||
| Table tilt-deegree | 15º | |||
| Throat clearance | 380/15" | |||
| Work table size | 355x355 / 14"x14" | |||
| Standard pitches | 100/4",125/5", 150/6",175/7" 250/10" |
|||
| Divisions | Up to 6 | |||
| Total power required | Single phase | 1.5 / 1440 | 2 / 1440 | 1.5/2800 |
| Approx. wt. of machine - kg. | 250 | 175 |
Surface Planers
Max Models :
Surfo Max/S J - 3013 | J - 3018 | J - 3113 | J - 3118
Master Models :
Surface Planer-s (Open Stand) J - 106 | J - 107 | J - 107 L | J - 107 LL
Surface Planer-s (Box Type) J - 127 | J - 127 L | J - 127 LL | J - 128 | J - 128 LL | J - 129
Surface Planer (Box Type) J - 118 | J - 119
The best surfacer in the range with highest features, for the quality conscious!
Surfomax-s. 'S' stand for circular saw attachment. A heavy duty & sturdy machine combining precision, it has some of the best salient features along with provision to fit dust collector. Special tilting saw fence It can tilt up to 45° for angular cutting and have handle for adjusting saw fence for both controlling width & angle of cut.
Rack & pinion rip fence system Large rip fence is provided with rack & gear system for easy & perfect working. It can tilt up to 45° with the help of a handle, for angular work. A powerful lock can hold the ripfence at any angle. Noise dampening system for both surface tables that reduces the noise level considerably for a quieter operation. Specially designed Mitre gauge with guide given in table T-slot for easy sliding
Models & Specifications
Thickness Planers
Max Models : Duo Max J - 2220
Plano Max J - 2015 | J - 2020
Master Models : Duo - 12 and Duo - 18 J-2212 | J-2218
Thickness Planer (automould) J - 502 | J - 503
Thickness Planer J - 601 | J - 603
Thicknessers of the same functional standards, at a lower install cost
Maximum quality thicknesser with optional facility of 3 interchangable attach. and anti kickback mechanism. An option between rugged & durable thicknessers with moulding facility. Anti kick-back mechanism Provided as a safety feature to avoid backsliding of the workpiece. Anti kick-back system Provided as a safety feature in combimax to avoid backsliding of the workpiece while thicknessing.
Bottom cutter-block : the cutter block can be conveniently pulled out on a special cutter-block tray for replacing or setting the blades. Convenient mechanism for easy lifting of top cover. Specially designed spiral, serrated 2 - infeed rolls for positive feeding.
Models & Specifications
Other MCS

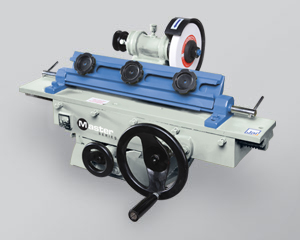

Master Models : Blade Grinder (Gear Type) J - 234 | J - 235 | J - 236
Turning lathe (Floor Model) J - 911 (4.5 ft.) | J - 921 (6 ft.) | J - 931 (8 ft.)
Blade Grinder (Cup Wheel Model) J - 234 C | J - 235 C | J - 236 C
The most efficient & cost - efficient range of m/cs!
Models & Specifications
